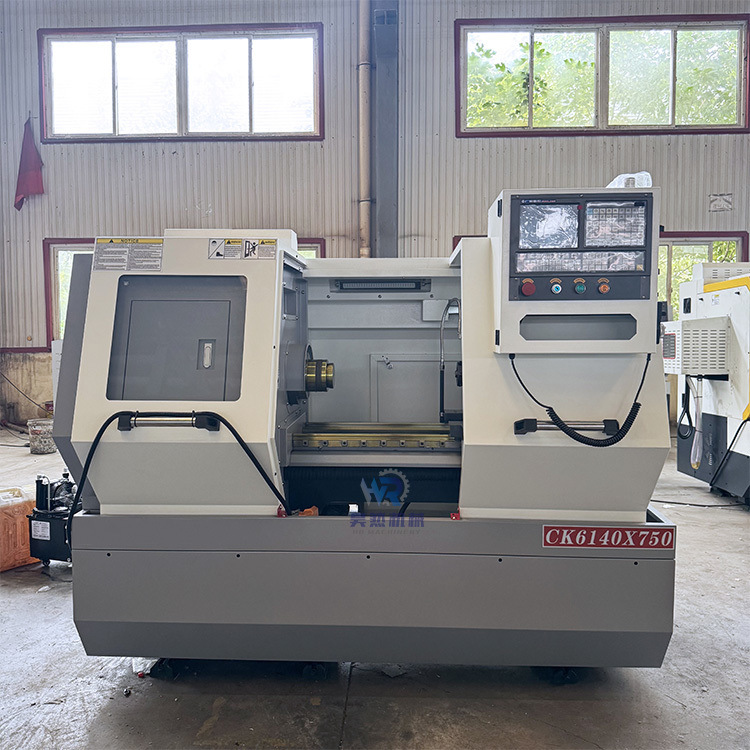

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

جميع المنتجات

مركز التصنيع العمودي باستخدام الحاسب الآلي

(78)

آلة الطحن العمودي CNC

(14)

آلة CNC VMC

(29)

آلة طحن CNC VMC

(28)

مركز طحن CNC

(37)

آلة طحن عالمية

(27)

مركز تصنيع VMC

(19)

مركز الطحن العمودي

(31)

آلة طحن المعادن

(20)

4 آلة المحور VMC

(14)

مركز تصنيع 5 محاور

(15)

آلة مخرطة CNC

(71)
أفضل المنتجات
عالية الدقة الأفقية CNC أنابيب الخيوط المتداول QK1322-1500 مع 500MM الحد الأقصى الطول

عالية الدقة الأفقية CNC أنابيب الخيوط المتداول QK1322-1500 مع 500MM الحد الأقصى الطول

أفقي Tck56-1000 سرير منحني آلة التسلسل CNC الدقة العالية

أفقي Tck56-1000 سرير منحني آلة التسلسل CNC الدقة العالية

ابن دردش الآن

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

صورة كبيرة :  CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

تفاصيل المنتج:
مكان المنشأ: شاندونغ ، الصين
اسم العلامة التجارية: HR
إصدار الشهادات: CE
رقم الموديل: CK6140
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعات
الأسعار: $9130 1set
تفاصيل التغليف: حالة خشبية
وقت التسليم: 30 يومًا
شروط الدفع: L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram
القدرة على العرض: 40sets الشهور
اتصل

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

وصف
الجهد االكهربى: 3 المرحلة 380V 50Hz الصف التلقائي: تلقائي
السلطة (ث): 7.5kw حالة: جديد
الأعلى. قطر الأرجوحة: 400mm وزن: 1650/1700 كجم
CNC أم لا: CNC يكتب: أفقي
خدمة ما بعد البيع المقدمة: الدعم عبر الإنترنت ضمان: 1 سنة
المغزل يتحمل: 60 مم سرعة المغزل: 150-2500 دورة في الدقيقة
لون: يمكن أن تكون حرة في الاختيار Max. الأعلى. Spindle Speed (rpm) سرعة المغزل (دورة في الدقيقة): 2500 دورة في الدقيقة
اسم المنتج: آلة مخرطة CNC CK6140 آلة قطع المعادن الأفقية السنة: جديد
نظام التحكم: SIEMENS GSK FANUC (اختياري) نوع الآلة: حاسوب حاسوب صناعي عالي الجودة الصين
إبراز:

small benchtop CNC lathe machine,horizontal CNC turning machine,CK6140 CNC lathe machine

,

horizontal CNC turning machine

,

CK6140 CNC lathe machine

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
Product Description

  •






    •
    •

    •
  • CNC Lathe Features

    •

1. Frequency conversion stepless speed regulation.
2.With servo system .
3.Four position elearic turret .
4.Standard configuration: spring chuck and chuck double use.
5.Optional configuration : hydraulic chuck, gang type tool post.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 0
Item
CK6140A
CK6140B
Max. swing dia. over bed
Φ400mm
Φ400mm
Max. swing dia. over cross slide
Φ225mm
Φ245mm
Max. processing length(mm)
750
1000
750
1000
Dia. of spindle hole
Φ60mm
Φ52mm
Spindle speed
150-2500rpm
150~500rpm (low) 320~1600rpm (high)
spindle taper
MT6
Tool holder
4 station electric tool post(optional 6/8staion electric turret)
Tool bar section
20X20
20X20
Main motor power
5.5KW
5.5KW
X/Z axis fast feeding speed
6/8 M/MIN
6/8 M/MIN
X/Z axis position accuracy(mm)
0.01/0.015
0.01/0.015
X/Z-axis repeatability(mm)
0.012/0.013
0.012/0.013
Clamping
3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.
60
60
60
60
Tailstock sleeve travel
120mm
120mm
Tailstock taper
MT4
Dimension
2120X1400X1700
2050x1400x1650
2370X1400X1700
2300X1400X1650
Weight(kg)
1800
1950
1850
2050
Standard configuration:
Optinal configuration:
GSK928 CNC Controller
Siemens,Fanuc cnc controller system
Servo motor for X,Z axis, Servo driven
pneumatic chuck,hydraulic chuck
3 Jaw Manual Chuck
pneumatic tailstock,hydraulic tailstock
4 station electric tool post
6 staion tool turret,8staiton tool turret
Auto lubrication system
Auto feeder system
lighting system
Chip conveyor
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 1
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 2
Details Images
Product Presentation
This machine is widely used in processing and manufacturing the electrical appliance, instrume ntation industry,automobile, motorcycle, fastener bearings, photographic and film machinery.hardwa re tools watches, glasses, stationery motors, valves and gas and other high precise and complex components lt is the ideal high eficient equipment in the hardware machining industry.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 3
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 4
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 5

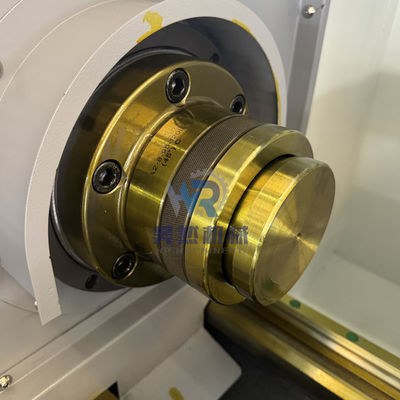

Manual chuck

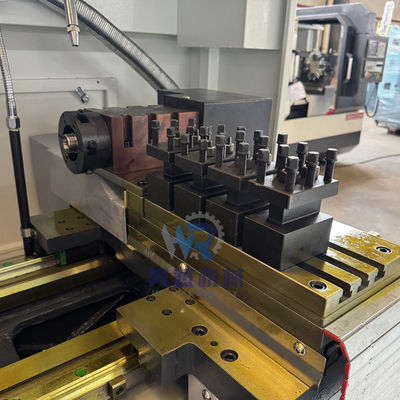

4 Position Electrical Toolpost
Circuit Controlle
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 6
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 7
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 8
Electromagnetic Pump
GSK Controller System(optional)
Spindle Diameter
