High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine

High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine
High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine

صورة كبيرة :  High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: HR
إصدار الشهادات: CE
رقم الموديل: tck630
شروط الدفع والشحن:
الحد الأدنى لكمية: 1Set
الأسعار: usd 18000-30000
تفاصيل التغليف: حزمة التصدير القياسية (حالة الخشب الرقائقي)
وقت التسليم: 30 يوم
شروط الدفع: L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram
القدرة على العرض: 40 مجموعة / شهر
اتصل

High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine

وصف
(ماكس) ، قف على السرير يا (ديا): Φ650 أقصى قطر للقطع: Φ630
أقصى تأرجح على ضياء crosslide: Φ400 المسافة بين مركزين: 750
المغزل تفتق: A2-8 المحرك الرئيسي: 11kw
إبراز:

heavy duty CNC lathe machine,slant bed CNC metal turning machine,high precision CNC lathe with warranty

,

slant bed CNC metal turning machine

,

high precision CNC lathe with warranty

High Precision TCK40 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine
Product Introduction
The inclined bed CNC lathe has good reliability, stability and protection. Seals the illuminated process area, prevents swarf or coolant from entering operators or maintenance personnel, and provides safe monitoring of the cutting process. The blocking function of the working area of the machine prevents misoperation or accidents. Automatic lubrication system and automatic alarm system can detect and deal with faults in time.
High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine 0
TCK630 slant bed cnc lathe machine
Max swing over bed dia.
Φ650
Max cutting Diameter
Φ630
Max swing over crosslide dia.
Φ400
Distance between two center
750
Spindle taper
A2-8
Clamping
3 jaw hydraulic chuck
Main motor
15KW
Spindle speed
3000rpm
Spindle hole diameter
Φ82
Bar capacity
72
X axis travel
630
Z axis travel
750
Spindle taper
A2-8
Turret
8-position hydraulic tool holder
X/Z axis fast feeding speed
20
Quill Diameter
Φ100
Sleeve travel
120
Tailstock Quill taper
MT5
Dimension
3170x1180 x1700
Weight
5000kg
Details Images

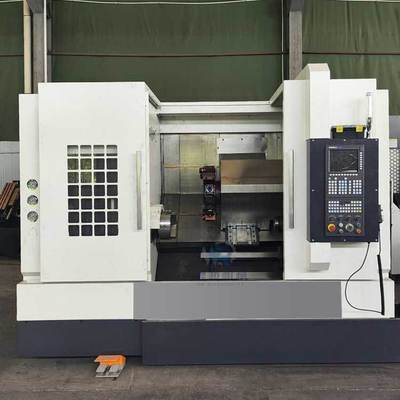

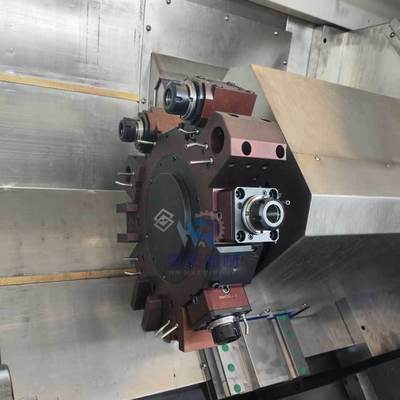

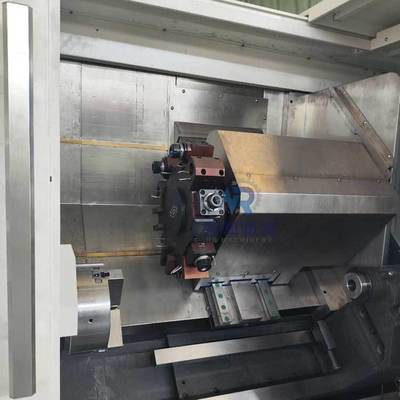

High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine 1

The clamping and loosening of hydraulic chuck can be controlled by foot, which is convenient and fast. The hydraulic pressure adjustment adopts panel type knob operation, and the dial display makes the adjustment safe and convenient. The appearance of the machine tool is novel, and the panel operation is convenient. Considering its high power, high precision, high performance and other characteristics, this series of machine tools is undoubtedly the most powerful product of the same type.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine 2
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine 3
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
High Precision TCK630 Heavy Duty CNC Lathe Machine Slant Bed CNC Metal Turning Machine 4
FAQ
Q1: How to buy the right product for you ?
A1: You can pass on your requirements to me, and we will reply to you in time.

Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will
timely deal with the free new parts for you to replace the next order.

Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
